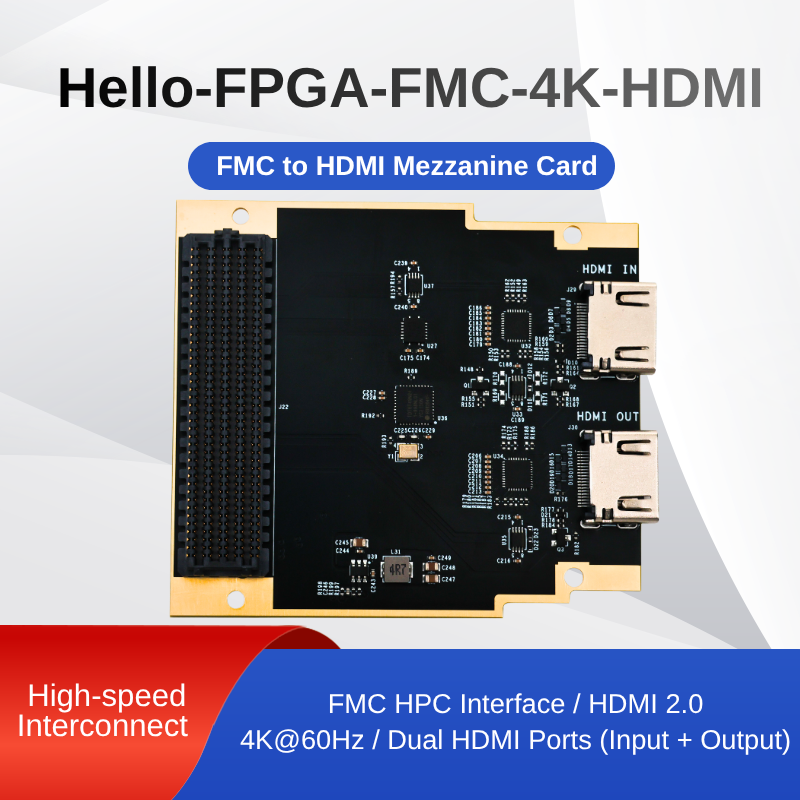

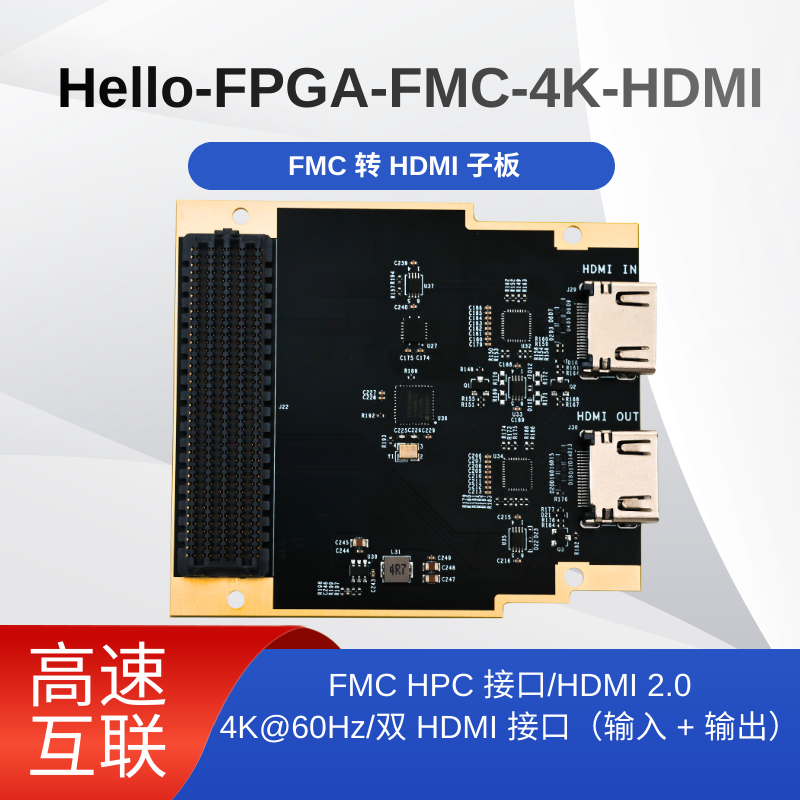

Hello-FPGA-FMC-4K-HDMI
FMC to HDMI 4K UHD Video Mezzanine Card - HDMI2.0 4K@60Hz | Input + Output Dual Interfaces | VITA57.1 Compliant
4 Core Advantages
4K@60Hz UHD Transmission
Complies with HDMI 2.0 standard, stably supports 4K@60Hz UHD video transmission on K7 series FPGAs. No need for high-end chips, significantly reducing development costs.
Input + Output Dual Interfaces
Equipped with 1-channel HDMI input and 1-channel HDMI output, supporting bidirectional video expansion. Enables simultaneous video capture and display to meet diverse development needs.
Standard FMC Interface Compatibility
Strictly adheres to VITA 57.1 standard, adopts FMC HPC high-density interface. Plug-and-play compatibility with mainstream FPGA development boards from Xilinx, Intel and other brands.
Industrial-Grade Stable Design
Onboard 24LC04 I2C EEPROM auto-recognition chip and NB7NQ621M high-speed equalizer. Delivers pure signal and stable transmission, suitable for industrial-grade applications.
Product Overview
- Hello-FPGA-FMC-4K-HDMI is a FPGA UHD video expansion mezzanine card based on VITA 57.1 standard, specially designed for 4K video capture, display and transmission development.
- Adopts FMC HPC high-density interface, provides 1-channel HDMI 2.0 input and 1-channel HDMI 2.0 output, supporting 4K@60Hz ultra-high resolution video transmission.
- Onboard high-speed signal equalization chip and I2C storage chip to achieve signal enhancement and module auto-recognition. Enables full-frame 4K video processing on ordinary K7 FPGAs.
- Widely applicable to development scenarios such as video capture, medical imaging, industrial vision, UHD display, experimental teaching and prototype verification.
Hardware Features
- Video Standard: HDMI 2.0 compliant, backward compatible with HDMI 1.4/1.3, maximum support for 4K@60Hz resolution
- Interface Configuration: 1x HDMI input + 1x HDMI output, standard Type-A interface
- Expansion Interface: FMC HPC 160-pin high-density connector, ASP-134488-01 standard interface
- Onboard Chips: 24LC04 I2C EEPROM (auto-recognition), NB7NQ621M high-speed signal equalizer
- Signal Enhancement: High-speed differential signal design, supporting long-distance, high-definition and low-interference video transmission
- Compatible Platforms: Mainstream FPGA development boards including Xilinx K7, V7, Zynq-7000, Ultrascale series
Technical Specifications
| Parameter Category | Detailed Specifications |
|---|---|
| Product Model | Hello-FPGA-FMC-4K-HDMI |
| Video Standard | HDMI 2.0, supports 4K@60Hz / 1080p@60Hz |
| Interface Configuration | FMC HPC 160Pin + 1x HDMI Input + 1x HDMI Output |
| Onboard Functions | I2C Auto-recognition, High-speed Signal Equalization, Differential Signal Transmission |
| Compatible Chips | Xilinx Kintex-7 / Artix-7 / Zynq-7000 series, etc. |
| Operating Temperature | 0℃ ~ 70℃ (Commercial Grade) / -40℃ ~ 85℃ (Industrial Grade) |
| Power Supply | 3.3V / 12V supplied by FMC carrier board |
| Application Scenarios | Video Capture, Industrial Display, Medical Imaging, Machine Vision, Prototype Verification |

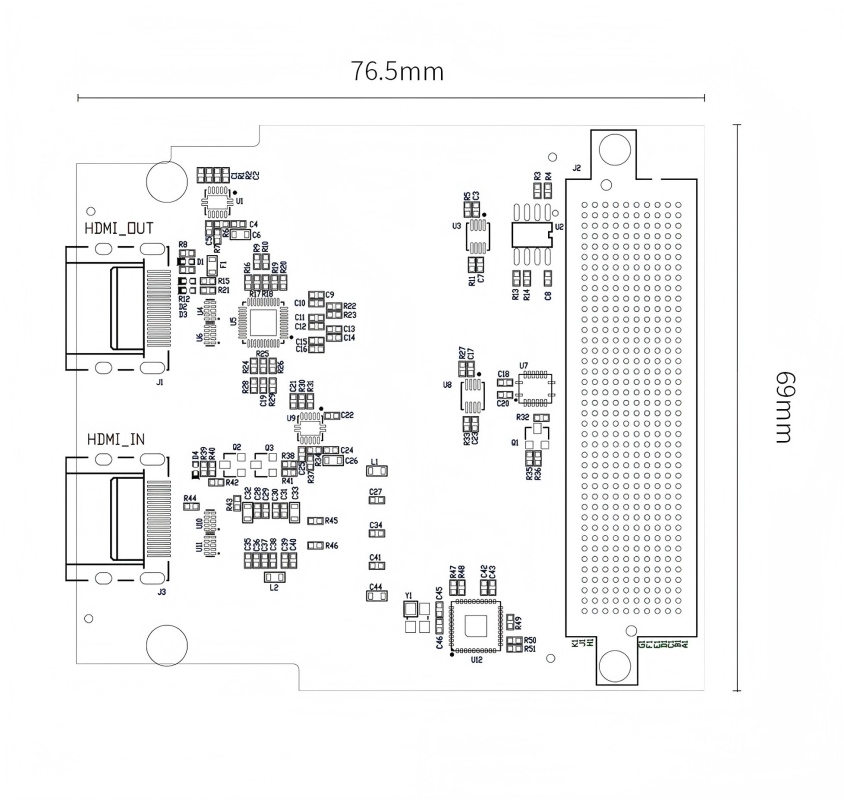

Product Dimension Drawing
Standard FMC Mezzanine Card Dimensions (Unit: mm)
Safety Warning (Mandatory Reading)
- Do NOT hot-plug the FMC interface. Always turn off the FPGA carrier board power before installation or removal.
- Take electrostatic protection measures. Discharge static electricity from human body before operation to avoid electrostatic breakdown of chips.
- Align the HDMI interface correctly when plugging in or out. Operate gently to prevent pin bending or breakage.
- Do NOT use in high-temperature, humid or strong electromagnetic interference environments.
Quick Start Guide
- Turn off the FPGA carrier board power. Align the mezzanine card FMC interface with the carrier board slot, insert smoothly and fasten the screws.
- Connect HDMI signal source (input) or HDMI display (output) according to development requirements.
- Turn on the carrier board power. The FPGA automatically recognizes the mezzanine card model and configuration information via I2C.
- Load the video project in VIVADO development environment and configure HDMI input/output timing.
- Run the test program to verify whether the 4K video capture, transmission and display functions work properly.
Typical Applications
Semiconductor Inspection
Medical Imaging
Aerospace
Industrial Automation
Machine Vision
Precision Detection
