Hello-FPGA-FMC-4-MIPI

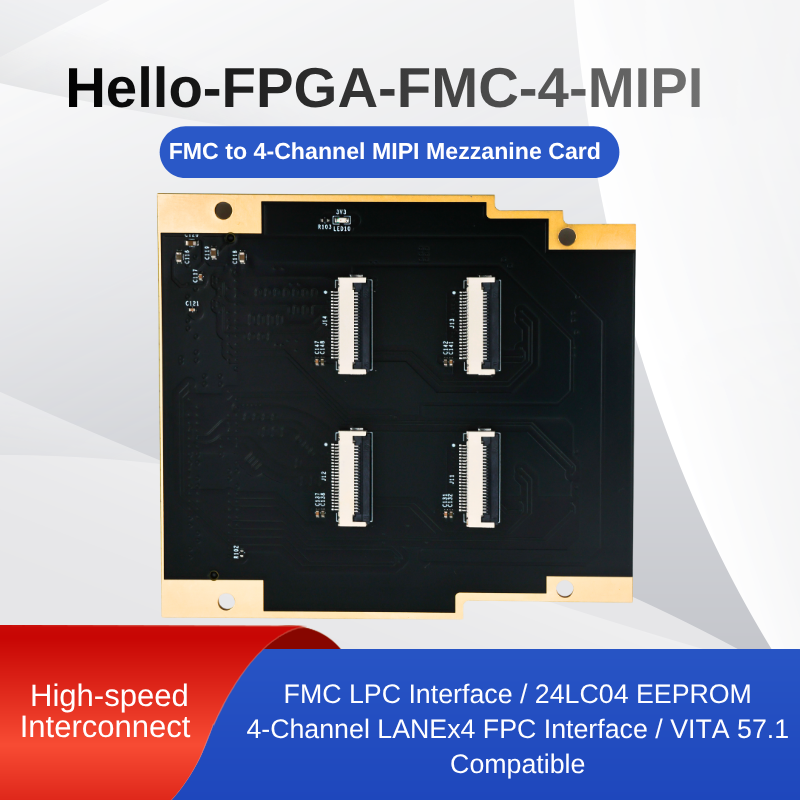

4-Channel MIPI High-Speed Interface Expansion FMC Mezzanine Card - VITA 57.1
Compliant | 2.5Gbps Per Channel | Dedicated for Embedded Vision
4 Core Advantages
Standard Compliance
Strictly adheres to VITA 57.1 standard and MIPI CSI-2/DSI-2 protocol, adopts FMC LPC 160-pin interface, compatible with mainstream FPGA carrier boards such as Xilinx Zynq and Intel Stratix, featuring strong cross-platform adaptability.
4-Channel High-Density Expansion
Integrates 4-channel MIPI LANE x4 FPC interfaces (20PIN, 1.0mm pitch), with a single-channel transmission rate of up to 2.5Gbps, supports simultaneous connection of multiple MIPI devices to meet high-density data transmission requirements.
Low-Power Adaptation
Adopts differential LVDS signal type, featuring both low power consumption and anti-interference performance, suitable for power-sensitive scenarios such as embedded vision and automotive electronics; supports VADJ adjustable voltage (1.2V/1.8V/2.5V) to flexibly match device requirements.
User-Friendly Connection Design
Can directly connect to MIPI cameras or MIPI LCD screens via FPC cables without additional adapter modules; onboard 24LC04 I2C EEPROM supports I²C auto-recognition, stores board ID and manufacturer information to simplify the configuration process.
Product Introduction
- Hello-FPGA-FMC-4-MIPI is a high-density MIPI expansion module compliant with VITA 57.1 standard, an essential FPGA I/O expansion tool that makes development more efficient.
- Adopting FMC LPC interface, the product expands 4-channel MIPI high-speed interfaces for FPGA development boards with a single-channel rate of up to 2.5Gbps, which can be directly connected to MIPI cameras or MIPI LCD screens via FPC cables for convenient deployment.
- Onboard 24LC04 I2C EEPROM stores key board information and supports auto-recognition function. With the advantages of high-speed transmission, low power consumption and high compatibility, it is a core adaptation component for MIPI-related development and testing.
- Specially designed for scenarios such as embedded vision, industrial cameras, AR/VR and automotive electronics, it can be widely used in equipment R&D, university laboratory training, product prototype verification and other fields.
Hardware Features
- Standard Compliance: Strictly follows VITA 57.1 standard and MIPI CSI-2/DSI-2 protocol, adopts FMC LPC (Low Pin Count) 160-pin interface with strong cross-vendor adaptability.
- Interface Configuration: 4-channel MIPI LANE x4 FPC interfaces, 20PIN specification with 1.0mm pitch, supporting direct connection to terminal devices such as MIPI cameras and MIPI LCD screens.
- Transmission Performance: Maximum single-channel transmission rate of 2.5Gbps, supports differential LVDS signal transmission with both low power consumption and strong anti-interference capability to ensure stable data transmission.
- Onboard Components: Integrated 24LC04 I2C EEPROM supporting I²C protocol, stores board ID, manufacturer information, etc., realizes module auto-recognition without manual configuration.
- Power Supply Adaptation: Supports +3.3V and +12V power supply from carrier boards, with VADJ adjustable voltage (1.2V/1.8V/2.5V, etc.) to flexibly match the I/O level requirements of different devices.
- Compatibility Range: Adapts to FPGA development boards such as Xilinx Zynq and Intel Stratix series, covers mainstream FPGA platforms with a wide range of application scenarios.
Technical Specifications
| Parameter Category | Detailed Specifications |
|---|---|
| Basic Information | Product Name: Hello-FPGA-FMC-4-MIPI High-Speed Interface Expansion Module; Compliant Standards: VITA 57.1, MIPI CSI-2/DSI-2 |
| Interface Specifications | Core Interface: FMC LPC (Low Pin Count), 160 Pins; MIPI Interface: 4-Channel LANE x4 FPC Interfaces (20PIN, 1.0mm Pitch) |
| Transmission Performance | Single-Channel Rate: Up to 2.5Gbps; Supported Protocols: MIPI CSI-2 (Camera), DSI-2 (Display Screen); Signal Type: Differential LVDS |
| Onboard Components | Storage Chip: 24LC04 I2C EEPROM (Supports I²C Protocol); Power Supply Adaptation: +3.3V, +12V from Carrier Board, VADJ Adjustable Voltage (1.2V/1.8V/2.5V, etc.) |
| Compatible Devices | Terminal Devices: MIPI Cameras, MIPI LCD Screens; Carrier Board Compatibility: Xilinx Zynq, Intel Stratix and other FPGA Development Boards |
| Core Functions | 4-Channel MIPI Signal Expansion, High-Speed Data Transmission, I²C Module Auto-Recognition, Low-Power Adaptation, Anti-Interference Transmission |
| Applicable Scenarios | Embedded Vision Development, Industrial Camera Acquisition, AR/VR Device Testing, Automotive Electronics R&D, University Laboratory Training |
| Mechanical Dimensions | Standard FMC Mezzanine Card Size (Compliant with FMC LPC Installation Specifications) |

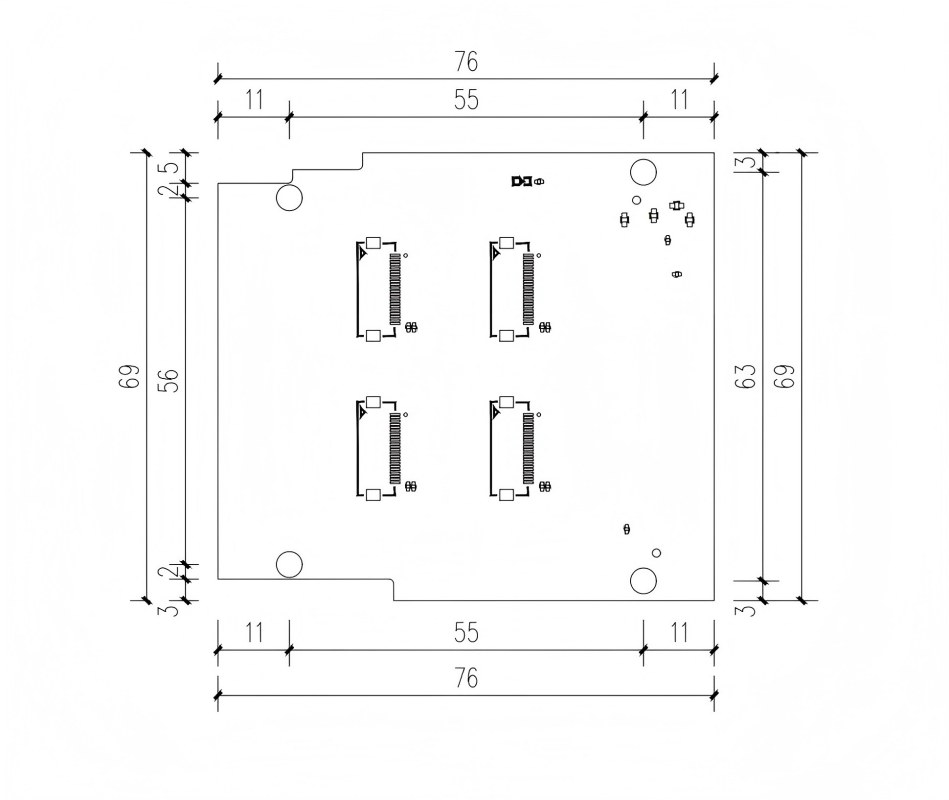

Product Dimension Diagram
Standard FMC Mezzanine Card Dimensions (Unit: mm)
Safety Warnings (Must Read)
- Do NOT hot-plug the board: Power off the FPGA carrier board and unplug the power cable before installation/removal. Hot-plug operation will directly damage the board, carrier board or connected MIPI devices.
- Take ESD Protection Measures: Release static electricity from the human body (anti-static wristband is recommended) before touching the electronic components of the product. Static electricity can cause permanent damage to precision components.
- Standard Interface Connection: Align the pin direction when connecting FPC cables to avoid reverse connection; insert with gentle force to prevent damage to FPC interfaces or board pins.
- Power Supply Safety: Connect power supply in strict accordance with the power supply requirements of the carrier board to ensure that the voltage is stable within the rated range; VADJ voltage configuration must match device requirements to avoid burnout due to overvoltage.
- Environmental Requirements: Avoid storing or using the product in places with water splashing, direct sunlight, strong electric/magnetic fields, strong vibration, or heavy dust to ensure long-term stable operation of the device.
Quick Start Guide
- Hardware Connection: Insert the Hello-FPGA-FMC-4-MIPI mezzanine card into the FMC LPC slot of the FPGA carrier board correctly, tighten the fixing screws to ensure the connector is fully engaged.
- Device Connection: Connect MIPI cameras or MIPI LCD screens to the MIPI FPC interfaces of the mezzanine card via FPC cables, confirm that the cable direction is correct and the connection is firm.
- Power Supply Configuration: Confirm that the FPGA carrier board is powered normally, configure VADJ adjustable voltage (1.2V/1.8V/2.5V, etc.) according to the I/O level requirements of the connected devices.
- System Configuration: Launch the FPGA development environment, load the board configuration file, read board information through the I²C auto-recognition function, and complete protocol adaptation configuration.
- Function Verification: Test the data transmission status of MIPI devices, confirm that functions such as camera image acquisition and LCD screen display are normal without packet loss or signal interference.
- System Deployment: After successful verification, deploy the device to the target scenario, fix the cables and boards securely, ensure good heat dissipation, and complete the integrated application.
Typical Application Scenarios
Semiconductor Testing Medical Imaging Aerospace Industrial Automation Machine Vision Precision Inspection
