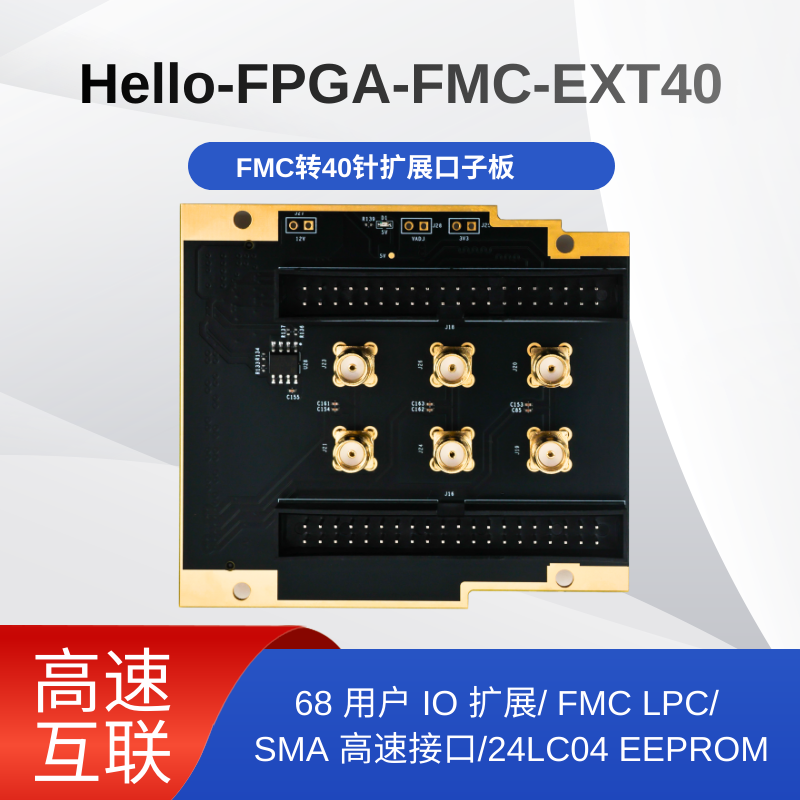

Hello-FPGA-FMC-EXT40
FMC to 40-Pin Expansion Mezzanine Card - VITA 57.1 Compliant | 68 User I/Os Expansion | 6-Channel SMA High-Speed Interfaces
4 Core Advantages
Standard Compliance
Strictly adheres to VITA 57.1 standard (FMC LPC specification), adopts 160-pin LPC standard connector, supports VADJ adjustable voltage (1.2V/1.8V/2.5V, etc.), compatible with mainstream FPGA carrier boards, plug-and-play, with strong cross-platform compatibility.
Adequate I/O Expansion
Expands 2 sets of 40-pin (2.54mm standard pitch) interfaces, provides 68 user I/Os including 34 I/O ports + 1-channel 5V power supply + 2-channel 3.3V power supply + 3-channel GND, meets multi-device simultaneous connection requirements, and direct Dupont wire connection is convenient and efficient.
High-Speed Interconnection Support
Equipped with 6 SMA high-speed interfaces directly connected to FMC high-speed transceivers, suitable for high-speed signal transmission scenarios; onboard 24LC04 I2C EEPROM supports I2C auto-recognition and stores key data such as board ID and manufacturer information.
High Usability
2.54mm standard pitch interfaces are compatible with conventional Dupont wires without the need for special connecting cables; the configuration of 3-channel power supply and 3-channel GND meets the power supply requirements of external devices, covering embedded development, signal processing and other scenarios with low threshold for getting started.
Product Introduction

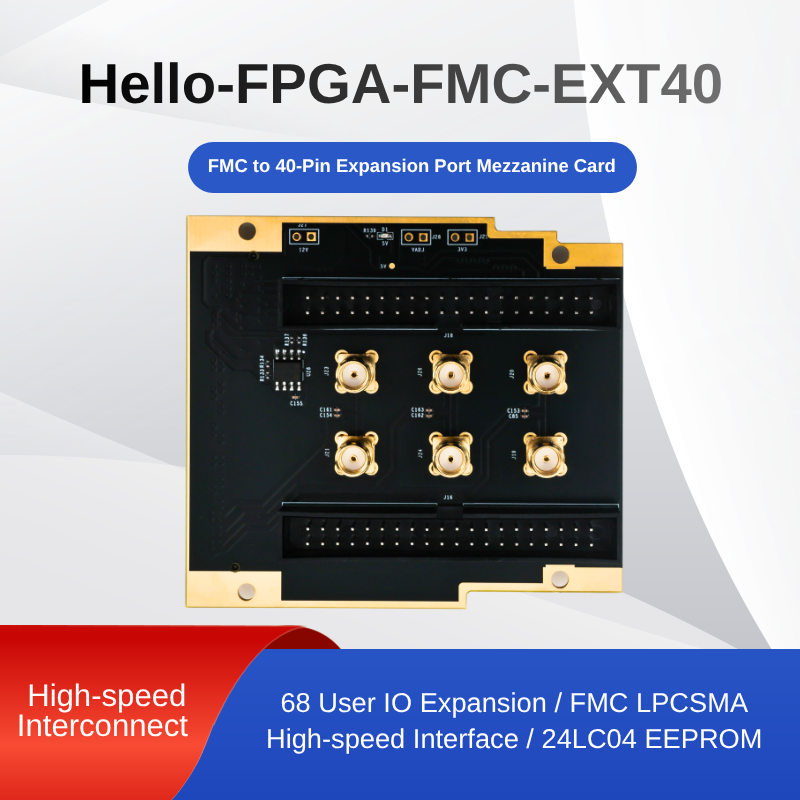

- Hello-FPGA-FMC-EXT40 is an FMC mezzanine card complying with VITA 57.1 standard, specially designed for FPGA development board I/O expansion, an essential FPGA I/O expansion tool to make development more efficient.
- The product connects to carrier boards through LPC standard connectors, can expand 2 sets of 40-pin interfaces (68 user I/Os in total) and 6 SMA high-speed interfaces, and onboard 24LC04 I2C EEPROM stores board information to support auto-recognition function.
- With wide compatibility, it can easily connect external devices such as binocular cameras, TFT LCD screens, and high-speed AD modules, suitable for multiple scenarios including FPGA embedded development, signal processing, industrial control and prototype verification.
- Adopting standardized design, it features convenient installation and flexible use, can effectively expand the I/O resources of FPGA development boards, reduce system design complexity and shorten project R&D cycles.
Hardware Features
- Standard Compliance: Strictly adheres to VITA 57.1 standard (FMC LPC specification), 160-pin LPC standard connector, supports VADJ adjustable voltage (1.2V/1.8V/2.5V, etc.), compatible with mainstream FPGA carrier boards.
- I/O Expansion Configuration: 2 sets of 40-pin (2.54mm pitch) interfaces, 68 user I/Os in total including 34 I/O ports + 1-channel 5V power supply + 2-channel 3.3V power supply + 3-channel GND, meeting the power supply and data transmission requirements of multiple devices.
- High-Speed Interfaces: 6 SMA high-speed interfaces directly connected to FMC high-speed transceivers, ensuring high-speed signal transmission stability, suitable for high-speed AD/DA modules, RF devices, etc.
- Onboard Components: Integrated 24LC04 I2C EEPROM supporting I2C protocol, stores board ID, manufacturer information, etc., realizes module auto-recognition without manual configuration.
- Convenient Connection: 2.54mm standard pitch interfaces are compatible with conventional Dupont wires for direct plug-and-play connection without special adapter accessories; integrated power and GND interfaces simplify external device wiring.
- Applicable Scenarios: Covers multiple fields including FPGA embedded development, signal processing, industrial control, prototype verification, university scientific research, with strong compatibility.
Technical Specifications
| Parameter Category | Detailed Specifications |
|---|---|
| Compliant Standard | VITA 57.1 (FMC LPC Specification) |
| Connector Type | LPC Standard Connector, 160 Pins; Supports VADJ Adjustable Voltage (1.2V/1.8V/2.5V, etc.) |
| Expansion I/O Configuration | 2 Sets of 40-Pin (2.54mm Pitch) Interfaces, 68 User I/Os in Total; Including 34 I/O Ports + 1-CH 5V + 2-CH 3.3V + 3-CH GND |
| High-Speed Interfaces | 6 SMA Interfaces, Directly Connected to FMC High-Speed Transceivers |
| Onboard Devices | 24LC04 I2C EEPROM (Supports I2C Auto-Recognition, Stores Board ID, Manufacturer Information) |
| Compatible Devices | Binocular Cameras, TFT LCD Screens, High-Speed AD Modules, DA Modules, RF Devices, Sensors, etc. |
| Mechanical Dimensions | Complies with FMC Standard Mechanical Specifications, Adapts to Installation of Mainstream FMC Carrier Boards (Standard FMC Size) |
| Applicable Scenarios | FPGA Embedded Development, Signal Processing, Industrial Control, Prototype Verification, University Scientific Research, etc. |

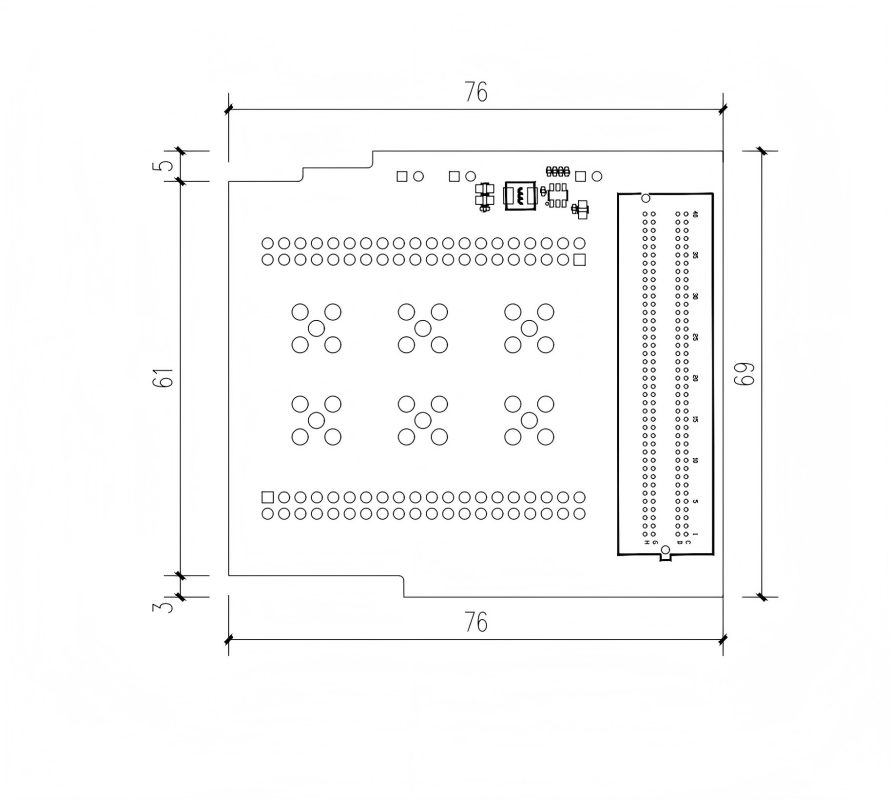

Product Dimension Diagram
Standard FMC Dimensions (Unit: mm)
Safety Warnings (Must Read)
- Do NOT hot-plug the board: Power off the FPGA carrier board and unplug the power cable before installation/removal. Hot-plug operation will directly damage the board, carrier board or connected external devices.
- Take ESD Protection Measures: Release static electricity from the human body (anti-static wristband is recommended) before touching the electronic components of the product. Static electricity can cause permanent damage to precision components.
- Standard Interface Connection: Ensure the FMC slot is fully aligned with the board connector before insertion to avoid pin damage caused by violent plugging; pay attention to positive and negative poles when connecting Dupont wires to prevent device burnout due to reverse connection.
- Power Supply Safety: Connect power supply in strict accordance with the power supply requirements of the carrier board, ensure that the voltage is stable within the rated range; the total power consumption of external devices shall not exceed the power output limit of the board when supplying power.
- Environmental Requirements: Avoid storing or using the product in places with water splashing, direct sunlight, strong electric/magnetic fields, strong vibration, or heavy dust to ensure long-term stable operation of the device.
- SMA Interface Protection: When connecting high-speed devices, avoid excessive bending of SMA cables to prevent interface loosening or cable damage that may affect signal transmission quality.
Quick Start Guide
- Hardware Connection: Insert the Hello-FPGA-FMC-EXT40 mezzanine card into the FMC LPC slot of the FPGA carrier board correctly, tighten the fixing screws to ensure the connector is fully engaged.
- External Device Connection: Connect external devices such as binocular cameras, LCD screens and AD modules to the 40-pin expansion interface via Dupont wires, paying attention to the correspondence between power supply positive/negative poles and signal pins.
- High-Speed Device Connection (If Needed): Connect high-speed devices to the SMA interfaces of the board via SMA cables to ensure secure cable connection without loosening.
- Power Supply Configuration: Confirm that the FPGA carrier board is powered normally, and supply power to external devices through the 5V/3.3V power supply provided by the board expansion interface according to requirements.
- System Verification: Launch the FPGA development environment, configure I/O port parameters, test the communication status between external devices and the FPGA carrier board, and confirm normal data transmission.
- Maintenance & Upgrade: Avoid pulling cables during use, and regularly check the connection status of interfaces; if you need to replace external devices, you can directly plug and unplug Dupont wires without turning off the carrier board power (for low-power devices).
Typical Application Scenarios
Semiconductor Testing Medical Imaging Aerospace Industrial Automation Machine Vision Precision Inspection
