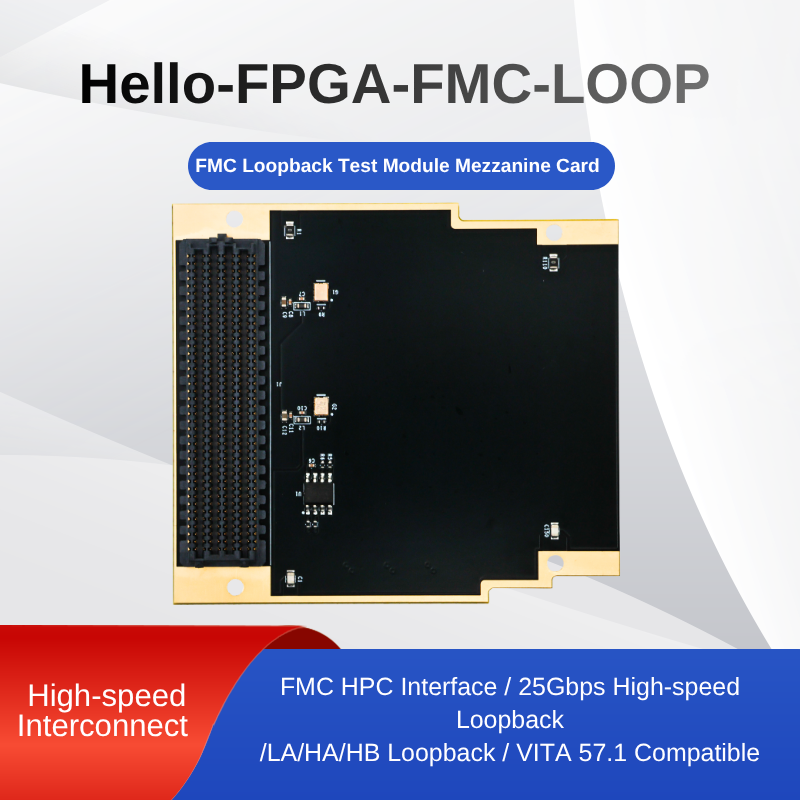

Hello-FPGA-FMC-LOOP
High-Speed Loopback Test FMC Mezzanine Card - VITA 57.1 Compliant | 25Gbps Data Rate | Full DP/LA/HA/HB Signal Loopback
4 Core Advantages
Standard Compliance
Strictly adheres to VITA 57.1 specification, adopts FMC HPC high-density 400-pin connector (Model: ASP-184488-01), features strong cross-vendor compatibility, supports mainstream FPGA carrier boards, and maximizes carrier board reuse rate.
Full-Signal Loopback Coverage
Supports full-type loopback of DP high-speed differential signals (10 pairs of DP0~DP9) and LA/HA/HB general-purpose signals (34 pairs of LA signal interfaces), meets high-speed and general I/O test requirements in one stop without additional adapter modules.
High-Performance Test Capability
DP signal loopback supports up to 25Gbps data rate, perfectly compatible with professional tools such as Xilinx IBERT bit error rate test and eye diagram analysis, ensures high-speed transmission verification accuracy, and achieves industry-grade low target bit error rate.
Convenient Verification Experience
Onboard 2-channel 156.25MHz crystal oscillators and 24LC04 I2C EEPROM (stores board information), enables test initiation without additional peripherals; compatible with VIVADO ILA/IO signal sampling and output, simplifies development and verification processes.
Product Introduction
- Hello-FPGA-FMC-LOOP is a high-performance loopback test module based on FMC HPC (High Pin Count) interface, an essential FPGA I/O expansion tool, specially designed for scenarios such as FPGA development, high-speed signal testing and communication system verification.
- Fully compliant with VITA 57.1 standard, the product provides full-type signal loopback and interface expansion capabilities for DP/LA/HA/HB, serves as the core test and adapter component for high-end embedded and signal processing systems, and significantly improves development efficiency.
- Integrates practical onboard components, allows testing without additional configuration, supports 25Gbps high-speed differential signal loopback and multi-type general-purpose signal testing, adapts to verification requirements in various fields including industrial control, intelligent vehicle, and medical equipment.
- By simplifying system design and reducing test complexity, it helps developers quickly complete high-speed interface verification and signal integrity testing, shortens product R&D cycles.
Hardware Features
- Standard Compliance: Strictly adheres to VITA 57.1 specification, adopts FMC HPC interface with connector model ASP-184488-01 and 400-pin design, features strong cross-vendor compatibility and stable and reliable connection.
- Signal Support: Covers DP high-speed differential signals (10 pairs of DP0~DP9) and LA/HA/HB general-purpose signals (34 pairs of LA signal interfaces), full-type loopback meets diversified test requirements.
- Performance Parameters: DP signal loopback supports up to 25Gbps data rate, adapts to high-speed transmission verification; supports IBERT bit error rate test and eye diagram analysis to ensure test accuracy.
- Onboard Components: Integrates 2-channel 156.25MHz crystal oscillators to provide stable clock source; 24LC04 I2C EEPROM supports storing board ID, manufacturer information, etc., to realize automatic module identification.
- Power Supply Compatibility: Supports +3.3V and +12V power supply provided by carrier board, VADJ adjustable voltage (1.2V/1.8V/2.5V, etc.) to match different I/O level requirements.
- Software Compatibility: Perfectly compatible with Xilinx VIVADO development environment, supports IBERT bit error rate detection, eye diagram analysis, ILA sampling, VI signal output and other functions for convenient debugging.
Technical Specifications
| Parameter Category | Detailed Specifications |
|---|---|
| Basic Information | Product Name: Hello-FPGA-FMC-LOOP Loopback Test Module; Compliance Standard: VITA 57.1 |
| Interface Specifications | Interface Type: FMC HPC (High Pin Count); Connector Model: ASP-184488-01; Pin Count: 400 Pins |
| Signal Support | Differential Signals: 10 Pairs (DP0~DP9); General-Purpose Signals: Full LA/HA/HB Types, Including 34 Pairs of LA Signal Interfaces |
| Onboard Components | Crystal Oscillator: 2-channel 156.25MHz Crystal Oscillators; Storage Chip: 24LC04 I2C EEPROM (Supports I2C Protocol, Stores Board Information) |
| Test Performance | Max Test Rate: 25Gbps (DP Signal Loopback); Supported Tools: IBERT (Bit Error Rate Test), VIVADO ILA/IO (Signal Sampling and Output) |
| Power Supply Compatibility | Supported Voltage: +3.3V, +12V Provided by Carrier Board, VADJ Adjustable Voltage (1.2V/1.8V/2.5V, etc.) |
| Software Compatibility | Development Environment: VIVADO; Supported Functions: IBERT Bit Error Rate Detection, Eye Diagram Analysis, ILA Sampling, VI Signal Output |
| Mechanical Dimensions | Complies with FMC Standard Mechanical Specifications, Adapts to Installation of Mainstream FMC Carrier Boards |
Product Dimension Diagram
Standard FMC Dimensions (Unit: mm)
Safety Warnings (Must Read)
- Do NOT hot-plug the board: Power off the FPGA carrier board and unplug the power cable before installation/removal. Hot-plug operation will directly damage the board, carrier board or connected devices.
- Take ESD Protection Measures: Release static electricity from the human body (anti-static wristband is recommended) before touching the electronic components of the product. Static electricity can cause permanent damage to precision components.
- Standard Interface Connection: Ensure the FMC slot is fully aligned with the board connector before insertion to avoid pin damage caused by violent plugging; confirm that the signal type matches the loopback mode during testing.
- Power Supply Safety: Connect power supply in strict accordance with the power supply requirements of the carrier board, ensure that the voltage is stable within the rated range, and avoid circuit burnout caused by overvoltage or reverse connection.
- Environmental Requirements: Avoid storing or using the product in places with water splashing, direct sunlight, strong electric/magnetic fields, strong vibration, or heavy dust to ensure long-term stable operation of the device.
Quick Start Guide
- Hardware Connection: Insert the Hello-FPGA-FMC-LOOP mezzanine card into the FMC HPC slot of the FPGA carrier board correctly, tighten the fixing screws to ensure the connector is fully engaged.
- Power Supply Configuration: Confirm that the FPGA carrier board is powered normally, configure VADJ voltage (1.2V/1.8V/2.5V, etc.) according to test requirements to ensure stable working voltage of the mezzanine card.
- Software Configuration: Launch Xilinx VIVADO development environment, load the board configuration file, configure loopback mode and clock parameters according to test type (DP/LA/HA/HB).
- Test & Verification: Enable IBERT tool for 25Gbps high-speed differential signal bit error rate test, or perform general-purpose signal sampling and output verification through ILA/IO function, confirm that the test results meet the standards.
- System Deployment: After passing the test, integrate the device into the target system according to the actual application scenario, fix the cables and board firmly, ensure good heat dissipation, and complete system integration.
- Maintenance & Upgrade: If you need to switch test types, you can directly configure through software without replacing hardware; regularly check the cleanliness of the board connector to avoid poor contact.
Typical Application Scenarios
Semiconductor Testing Medical Imaging Aerospace Industrial Automation Machine Vision Precision Inspection
