4 Core Advantages

Product Introduction

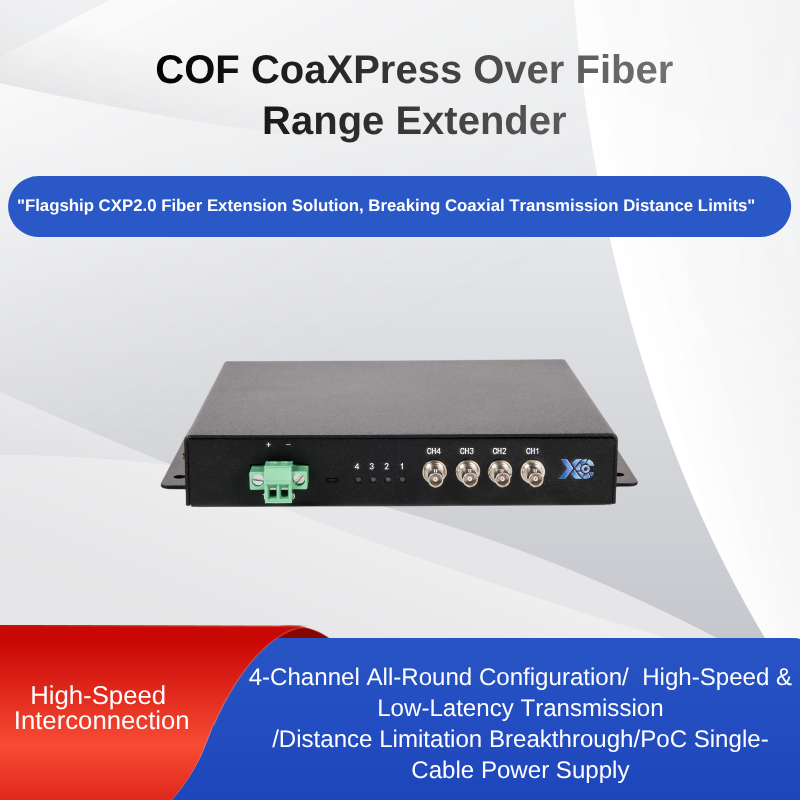

• COF CoaXPress Over Fiber Range Extender is a flagship CXP2.0 fiber extension solution, consisting of Device Side (CXP2_COF_4D) and Host Side (CXP2_COF_4H). It realizes bidirectional conversion between CXP electrical and optical signals, breaking the transmission distance limit of coaxial cables.
• Supports 4 independent CXP2.0 channels, adaptive rate from 1.25Gbps to 12.5Gbps, lossless low-latency transmission, ideal for high-speed industrial cameras, long-distance machine vision and industrial automation.
• Integrates PoC (Power over CoaXPress) function: the device side can power CXP cameras directly without extra wiring. Host side supports dual power input for system stability.
• Industrial-grade design, wide temperature, strong anti-interference, plug-and-play, compatible with all standard CoaXPress cameras and frame grabbers for quick system integration.

Product Features

• Bidirectional CXP2.0 opto-electric conversion: Device side converts CXP electrical signals to optical signals, Host side converts optical signals back to electrical signals. Bidirectional lossless transmission for uplink control and downlink image data.
• 4 independent channels: configurable rate per channel, no interference, supports up to 4 CXP cameras for long-distance multi-camera acquisition systems.
• PoC Camera Power Supply: Device side has independent PoC control, 17W max output per channel, switchable on demand for standard PoC cameras.
• Low-Speed Channel Aggregation: Host side aggregates 4 low-speed control signals for fiber transmission, improving efficiency and real-time performance.
• Intelligent Status Indication: Dual-color LED per channel for real-time connection, transmission and power status, easy for on-site debugging.
• Comprehensive Power Protection: Over-voltage, over-current, reverse polarity and short-circuit protection, ensures 7×24 hours reliable operation.

Hardware Specifications

Device Side (CXP2_COF_4D)

• 4 independent bidirectional CXP2.0 electrical-to-optical conversion, plug-and-play.
• Independent PoC switches, up to 17W per channel, configurable on demand.
• External DC12V wide-voltage power (10V-14V), max 8A current for stable power supply.
• Integrated EQCO125X40 high-speed equalizer for CXP signal integrity.
• Onboard XC7A35T FPGA for signal processing and protocol conversion.
• 4 dual-color LED indicators for real-time channel status monitoring.
• Industrial temperature range -40℃~80℃ for harsh environments.

Host Side (CXP2_COF_4H)

• 4 independent bidirectional optical-to-CXP2.0 electrical conversion, lossless signal restoration.
• Dual redundant power input: DC12V external + CoaX 24V PoC (Channel 0) for flexible power supply.
• Low-speed channel aggregation for efficient control signal transmission.
• Integrated EQCO125X40 high-speed equalizer for stable communication with frame grabbers.
• 4 dual-color LED indicators for real-time connection and transmission status.
• Industrial temperature range -40℃~80℃, suitable for long-term deployment in control rooms.

Technical Parameters

Product Interface Diagram

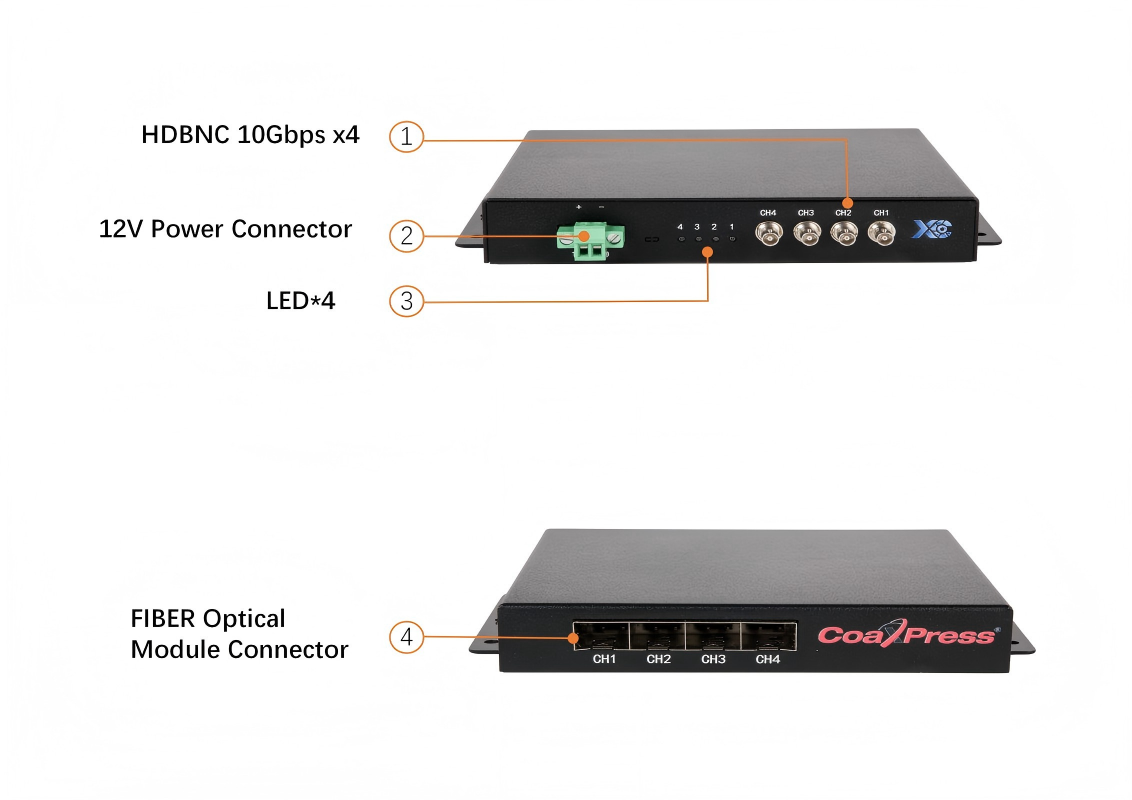

Device + Host Side Interface Definition

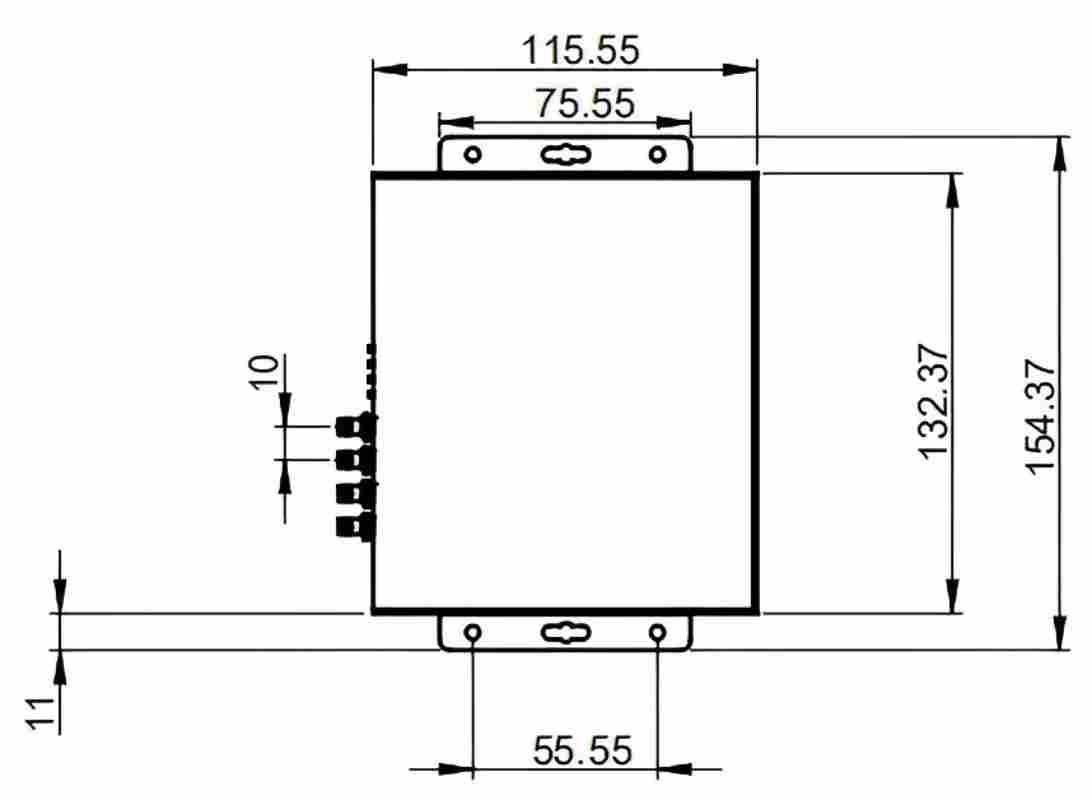

Mechanical Drawing

Dimensions: 132.37mm × 115.55mm (Unit: mm)

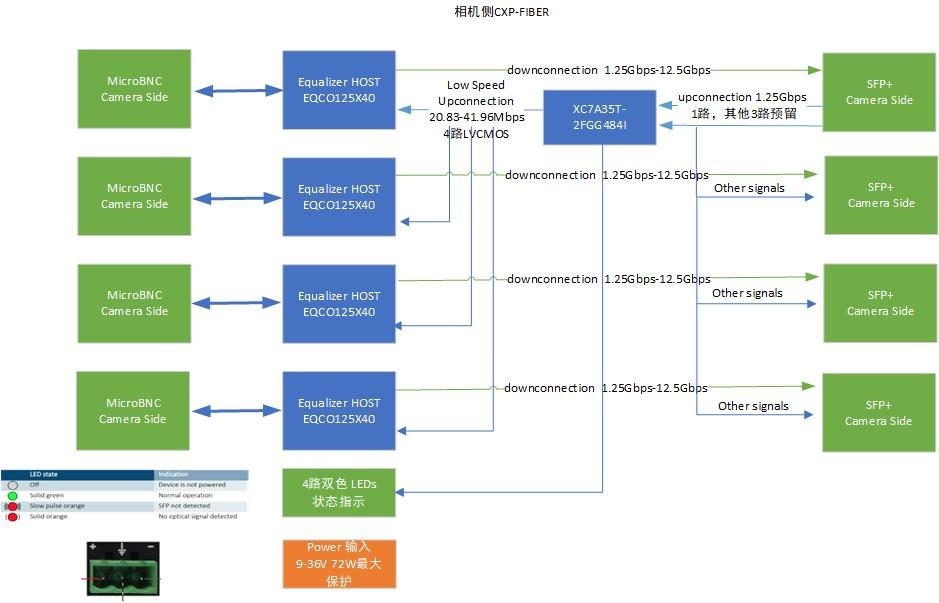

Functional Block Diagram

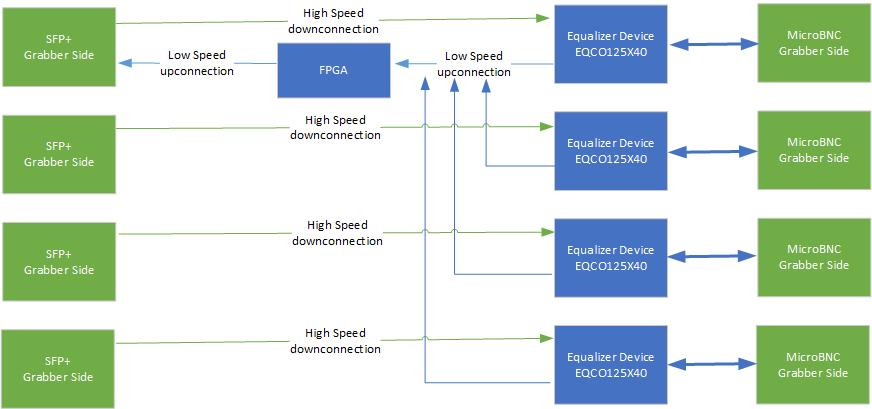

Device Side Block Diagram

Host Side Block Diagram

• High-Speed Equalizer: Integrated EQCO125X40 per channel, shapes and compensates CXP electrical signals for long-distance transmission integrity.
• FPGA Main Control: XC7A35T FPGA for protocol conversion, low-speed signal aggregation, status control and LED indication.
• Opto-Electric Module: SFP+ fiber module for bidirectional CXP signal conversion, breaking coaxial distance limits.
• PoC Control: Independent PoC switches and protection circuits on device side for stable camera power supply with over-current monitoring.
• Power Management: Wide-voltage input with multi-protection; host side supports dual redundant power for industrial stability.
• Status Indication: Dual-color LED per channel for real-time connection, transmission and power status monitoring.

Quick Start Guide

1. Hardware Connection: Connect Device Side to CXP camera via Micro BNC, Host Side to frame grabber via Micro BNC; interconnect both sides with SFP+ fiber modules and fiber cables.
2. Power Configuration: Connect 12V DC to Device Side, 12V DC or PoC power to Host Side; verify voltage and polarity are correct.
3. PoC Setup: Enable PoC switches for required channels, match camera power requirements with module output.
4. Power On: Turn on Host Side then Device Side, check LED indicators for normal channel status.
5. Function Verification: Launch frame grabber software, detect CXP camera, validate image acquisition and control with no frame loss or latency.
6. System Deployment: Fix the device on-site, protect and fix cables, complete deployment after full function validation.

Typical Applications
