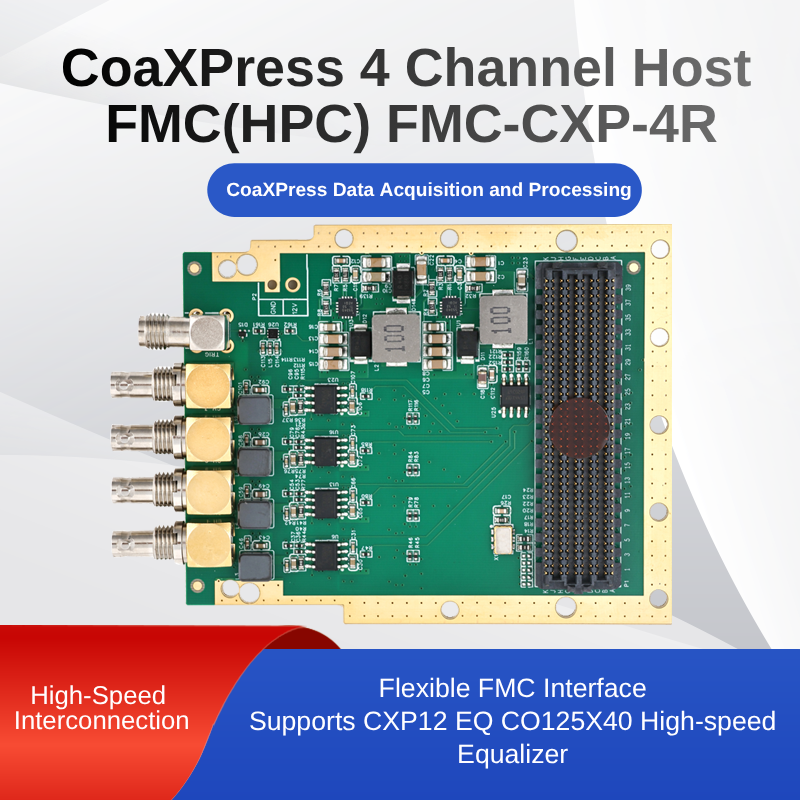

FMC-CXP-4R 4-Channel CoaXPress FMC Card

High-Speed CXP Data Acquisition & Processing Module

- Supports CXP12 / PoCXP / 12.5Gbps Full Rate

Downloads

FMC-CXP-4R CoaXPress FMC Card User Manual.pdf



Specifications

FMC-CXP-4R 4-Channel CoaXPress Card

4 Core Advantages

CXP12 Full Rate Compatibility

Supports CoaXPress 2.0 protocol, single-channel rate up to 12.5Gbps, 4-channel aggregate bandwidth 50Gbps. Compatible with CXP-1 to CXP-12 rates, ideal for high-speed image acquisition.

High-Speed Signal Equalization

Integrates CXP12EQCO125X40 equalizer with built-in CDR (Clock Data Recovery), optimizes signal integrity. Cable transmission distance up to 35m at 12.5Gbps.

PoCXP Power & Power Monitoring

Supports Power over CoaXPress (PoCXP), up to 17W per channel. 4 independent power monitoring circuits for real-time voltage/current tracking and over-current alert.

Flexible Interfaces & Compatibility

FMC HPC connector (VITA57.1 standard), compatible with Xilinx FPGA carrier boards. Equipped with SMA trigger I/O and 4×Micro BNC connectors for versatile applications.

Introduction to CoaXPress Protocol

  • CoaXPress is a high-speed point-to-point serial standard that transmits image data, control signals, and power over a single coaxial cable, featuring low latency, high real-time performance, and strong anti-interference.
  • Single-channel rate up to 12.5Gbps, 4-channel aggregation 50Gbps. Supports RG59/RG6 cables: 100m at 3.125Gbps, 35m at 12.5Gbps.
  • Supports precise trigger via coaxial cable (no extra wiring). PoCXP integrates power, data, and control in one cable for simplified system design.

Product Features

  • FMC-CXP-4R is a 4-channel CoaXPress FMC card for custom CXP image acquisition, supporting up to 4-channel CXP-12 full-rate transmission for high-speed CXP cameras.
  • Supports PoCXP: select external or onboard 12V power, up to 17W per channel for mainstream CXP cameras.
  • FMC HPC connector (VITA57.1) compatible with all FMC HPC FPGA boards and Xilinx FPGAs.
  • Works with HelloFPGA-Z19 carrier to build a high-performance embedded CXP platform for camera control, acquisition, and real-time processing.
  • Onboard 2Kb EEPROM (MT24C02) for user data storage; dual-color LED per channel for status indication via FPGA I/O.

Hardware Specifications

  • Channels: Up to 4 CoaXPress receive links, CXP-1 ~ CXP-12, single-channel 12.5Gbps.
  • Interfaces: 4×Micro BNC (CXP), 1×SMA bi-directional trigger (3.3V TTL), 1×FMC HPC (VITA57.1).
  • Power: PoCXP (17W/channel), 12V input (carrier/external), 24V DC compatible.
  • Signal: CXP12EQCO125X40 equalizer with CDR, 8b/10b encoding, uplink/downlink communication.
  • Extras: 4-channel power monitor, 2Kb EEPROM, 125MHz GT RefCLK, LED indicators.
  • Mechanical: Single-width FMC 63mm×84mm, industrial temp -40℃~85℃, high-speed PCB.
  • Trigger: SMA bi-directional I/O, SN74LVC1T45 level shifter, ±24mA drive, 210Mbps max rate.

Technical Parameters

Item Specification
Protocol CoaXPress 2.0, CXP-1 ~ CXP-12
Channels 4 CoaXPress Receive Links
Data Rate 12.5Gbps/Ch, 50Gbps Aggregate
Connectors FMC HPC (VITA57.1), 4×Micro BNC, 1×SMA
PoCXP 17W Max per Channel, Power Monitoring
Trigger I/O SMA, 3.3V TTL, 210Mbps Max
Level Shifter SN74LVC1T45DPKR, ±24mA Drive
Equalizer CXP12EQCO125X40 with CDR
Memory 2Kb EEPROM (MT24C02, I2C)
Clock 125MHz GT RefCLK
Dimensions 63mm×84mm (Single-Width FMC)
Temp Range Industrial (-40℃ ~ 85℃)
Power Input 12V DC, 24V Compatible
Compatibility Xilinx FPGA Boards with FMC HPC

Product Interface Diagram

Product Interface Definition

Product Interface Definition

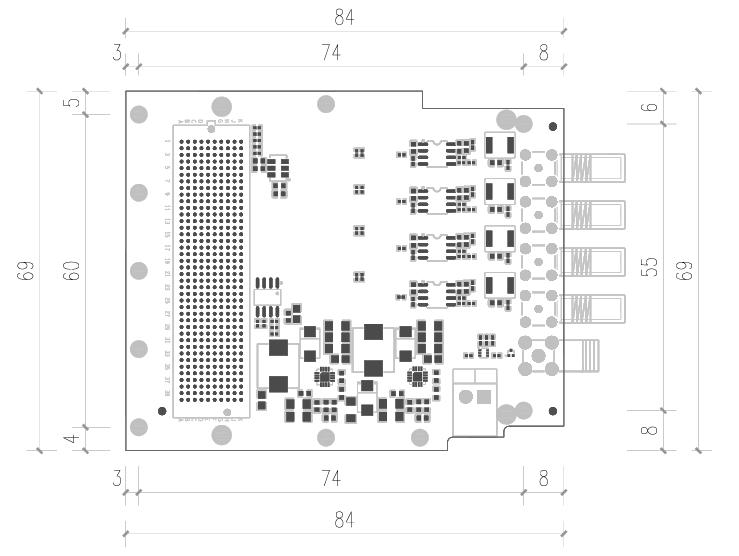

Mechanical Drawing

Mechanical Dimensions

Standard FMC Size: 63mm×84mm

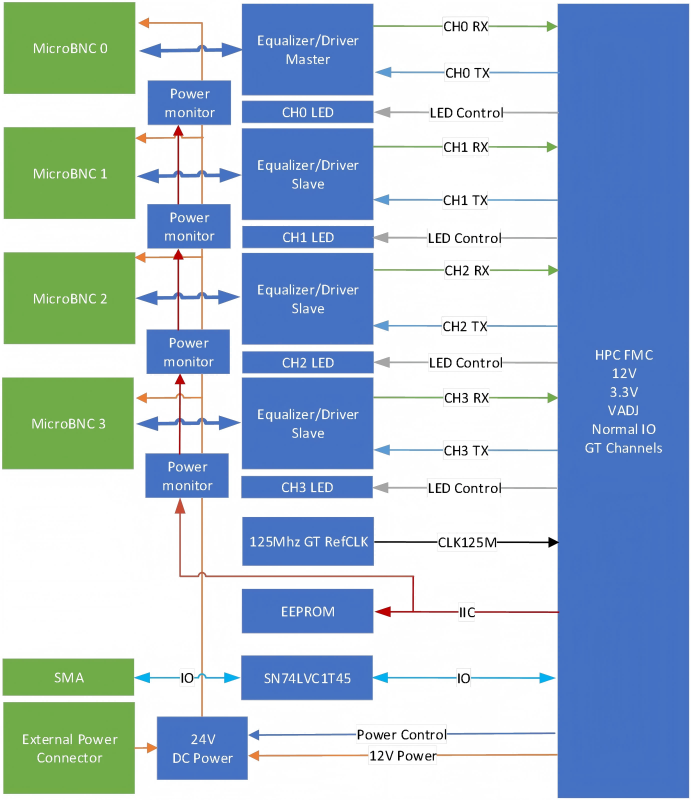

Functional Block Diagram

Functional Block Diagram
  • Equalizer/Driver: Receives high-speed downlink signals, transmits low-speed control signals, integrated CDR for signal integrity.
  • Power Monitor: Independent voltage/current monitoring per channel, alert on over-current.
  • LED Indicator: Dual-color LED per channel, programmable via FPGA I/O for status display.
  • EEPROM: MT24C02 (I2C, 256Bytes) for user-defined data storage.
  • Power Control: 12V input for PoCXP, max 13W output per channel.
  • SMA Trigger: Bi-directional digital I/O for trigger/sync, direction controlled by FPGA.

Safety Warnings (Must Read)

  • DO NOT plug/unplug the card with power on. Turn off the power before installation/removal to avoid damage.
  • ESD Protection Required: Use anti-static wristband to prevent static damage to components.
  • Avoid Harsh Environments: No water, direct sunlight, strong EMI, or vibration during use/storage.
  • Power Safety: Use 12V standard power, avoid reverse/over-voltage. Do not overload PoCXP channels.
  • Cable Standard: Use RG6 coaxial cables for optimal performance; secure connectors to avoid signal loss.

Quick Start Guide

  1. Hardware Connection: Insert FMC-CXP-4R into FMC HPC slot, secure screws. Connect CXP camera via Micro BNC and trigger device via SMA.
  2. Power Setup: Select carrier/external 12V power, ensure stable and correct polarity.
  3. Configuration: Set clock, data rate, and trigger mode via FPGA logic; save settings to EEPROM.
  4. Power Monitoring: Enable onboard monitoring, set over-current threshold for PoCXP safety.
  5. Verification: Power on camera and FPGA, check LED status, validate data acquisition and transmission.
  6. Expansion: Use SMA trigger for multi-card sync or FPGA logic for multi-channel coordinated control.

Typical Applications

Semiconductor Test Medical Imaging Aerospace Industrial Automation Machine Vision Precision Inspection
Semiconductor Test
Medical Imaging
Aerospace
Industrial Automation
Machine Vision
Precision Inspection
