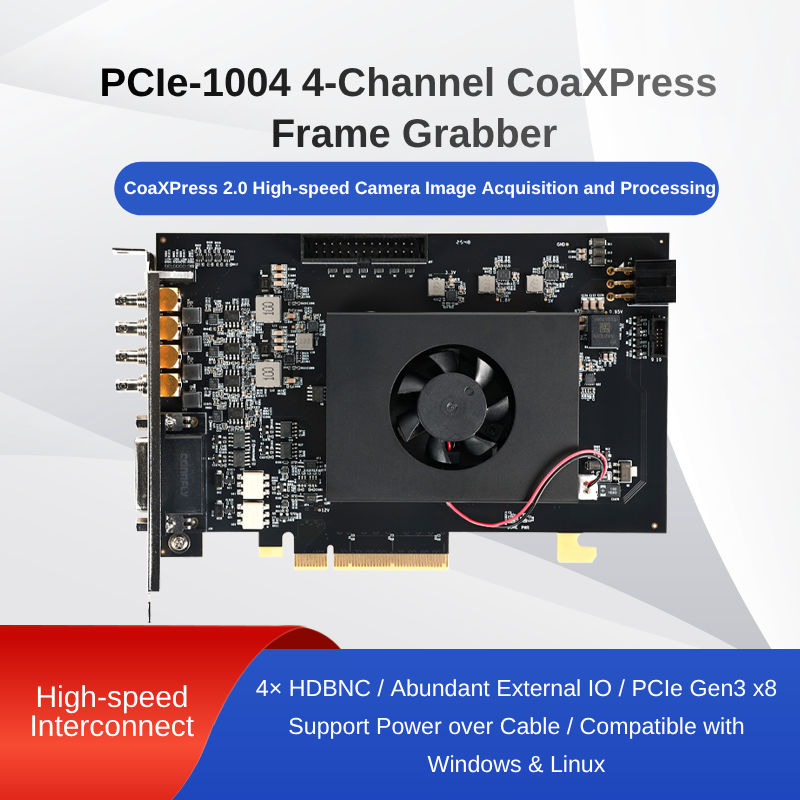

PCIe-1004 4-Channel CoaXPress Frame Grabber

● Interface Standard: Compliant with CoaXPress 2.0 standard; 4 channels × 12.5 Gbps, total bandwidth of 50 Gbps
● Onboard Memory: 4GB DDR4 SDRAM (64-bit, 2400 MHz)
● Host Interface: PCIe Gen3 x8, backward compatible with Gen2 and Gen1
● Widely applied in semiconductor inspection, medical imaging, aerospace, industrial automation and precision imaging systems.

PCIe-1004 4-Channel CoaXPress Frame Grabber

Dedicated Card for CoaXPress 2.0 Camera Image Acquisition & Processing

Documents Download

PCIe-1004 4-Channel CoaXPress Frame Grabber User Manual.pdf



Detailed Specifications

PCIe-1004

Four Core Advantages

Ultra-High-Speed Transmission

12.5Gbps per channel, total aggregated bandwidth up to 50Gbps for 4 channels. Single cable transmission distance reaches up to 35 meters.

Powerful Hardware Performance

Equipped with 4GB DDR4 memory and Xilinx KU040 FPGA, supporting real-time image processing, data buffering and high-frame-rate acquisition.

Full-Range I/O Interfaces

Rich external I/O matrix including RS-485, GPIO, LVDS and TTL, supporting multi-device linkage and industrial equipment control.

Flexible Development & Integration

Supports dual Aravis/GenTL SDK, zero-code debugging tools and customizable FPGA logic development.

Product Overview

  • Compliant with CoaXPress 2.0 standard: 4 channels × 12.5Gbps with total bandwidth of 50Gbps. Combined with high-performance Xilinx FPGA and 4GB DDR4 cache, it realizes high-frame-rate, jitter-free image transmission and real-time processing.
  • Single-cable integration technology: Integrates data, control signals and PoCXP power supply into one coaxial cable. It supports 35-meter long-distance transmission, simplifies wiring and reduces integration costs.
  • Compatible with Aravis/GenTL dual SDK and zero-code debugging tools. Widely applied in semiconductor inspection, medical imaging, aerospace, industrial automation and precision imaging systems.

Key Features

  • 4 independent CXP 2.0 input channels, max 12.5Gbps per channel
  • Built-in PoCXP function: Provides 12V DC power supply for cameras via coaxial cable
  • PCIe Gen3 x8 high-speed host interface, backward compatible with Gen2/Gen1
  • Supports GenTL Producer and open-source Aravis SDK
  • Rich I/O interfaces: RS-485, differential I/O, LVDS, TTL for industrial scenarios
  • 4GB DDR4 frame buffer for high-resolution and high-frame-rate image caching

Technical Specifications

Item Specification
Interface Standard CoaXPress 2.0, 4-channel HD-BNC, 12.5Gbps per channel
Host Interface PCIe Gen3 x8, backward compatible with Gen2/Gen1
FPGA Platform Xilinx XCKU040-2FFVA1156-2
Onboard Memory 4GB DDR4 SDRAM (64-bit, 2400MHz)
External I/O 26-pin D-SUB, 2×12-pin PH2.0, RS-485, LVDS, TTL
PoCXP Power Output 12V output, requires 24V/1.7A input
Software Support GenTL Producer, Aravis SDK

Product Interface Diagram

PCIe-1004 Interface Diagram

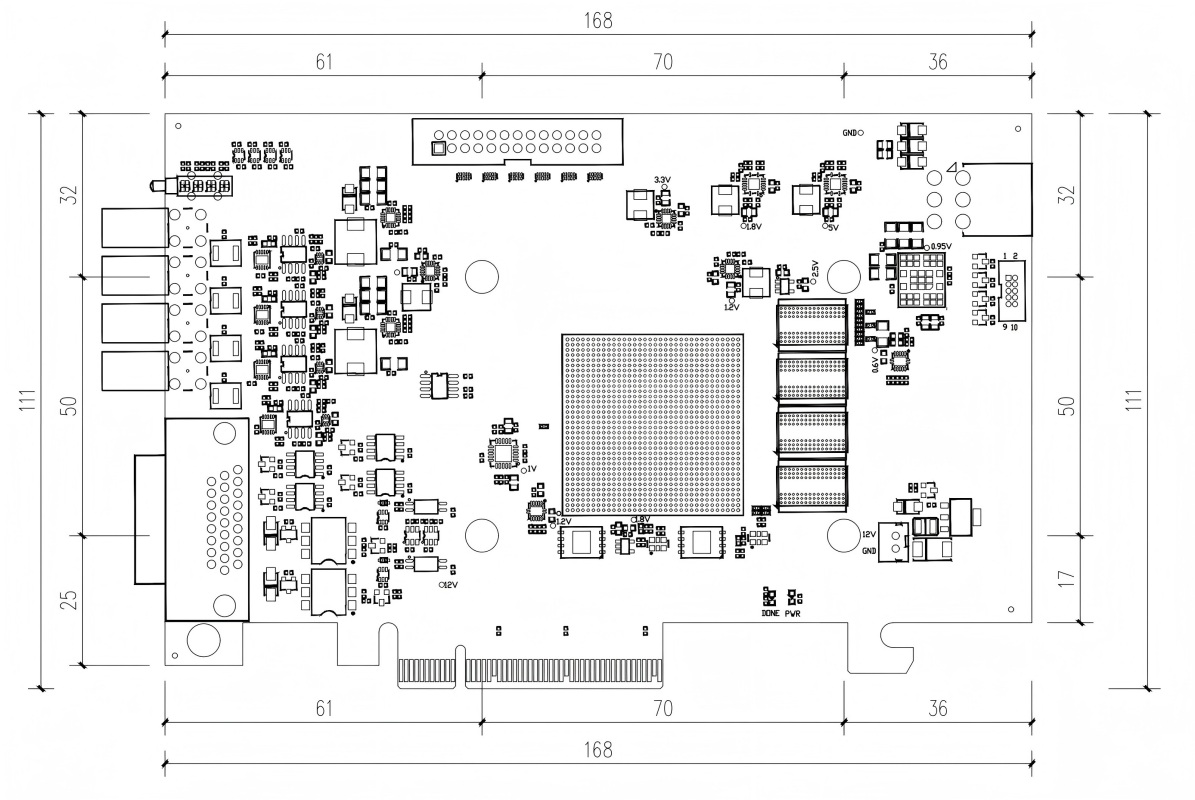

Product Dimension Drawing

PCIe-1004 Dimension Drawing

Safety Warnings (Must Read)

  • Do not install or remove the board while the system is powered on.
  • Connect the 6-pin PCIe 12V auxiliary power supply before using the PoCXP function.
  • Take ESD protection before touching the board to prevent static damage.
  • Operate in a dry, dust-free, low-vibration and anti-electromagnetic interference environment.

Quick Start Guide

  1. Double-click ImageGrab.exe to launch the debugging software.
  2. Select the detected CoaXPress device and click "Connect".
  3. Set image parameters: exposure time, trigger mode, pixel format, etc.
  4. Click "Live Preview" to start real-time image preview.
  5. Use "Save Image / Record" function for data acquisition and analysis.

Typical Applications

Semiconductor Inspection Medical Imaging Aerospace Industrial Automation Machine Vision Precision Inspection
