CoaXPress Cable
Hello-FPGA CoaXPress Interface Cable
High-Speed Coaxial Cable | 6.25G / 12.5G Series | DIN / BNC / HD-BNC Compatible | Stable Transmission
Product Description
Hello-FPGA CoaXPress Interface Cable is specially designed for connecting DIN 1.0/2.3, BNC, and HD-BNC connectors. It serves as a reliable interconnection solution between CoaXPress cameras and other CoaXPress devices.
Constructed with premium connectors and cable materials, it fully satisfies the high-speed signal transmission standards of CoaXPress. Featuring low signal loss, strong anti-interference capability and consistent transmission performance, it is widely deployed in industrial vision, medical imaging, precision inspection and other fields with strict signal quality requirements.
3 Core Advantages
Full Interface Compatibility
Covers mainstream connector types including DIN 1.0/2.3, BNC, Micro-BNC and HD-BNC, supporting multiple interface combinations to match diverse device connection demands.
Dual Rate Series
Two complete rate series available: 6.25G and 12.5G. Customers can select accordingly based on bandwidth requirements, covering regular to ultra-high-speed application scenarios.
Stable & Reliable Transmission
Premium cable core and precision connector design minimize signal attenuation and external interference, guaranteeing steady high-speed transmission suitable for long-term industrial operation environments.

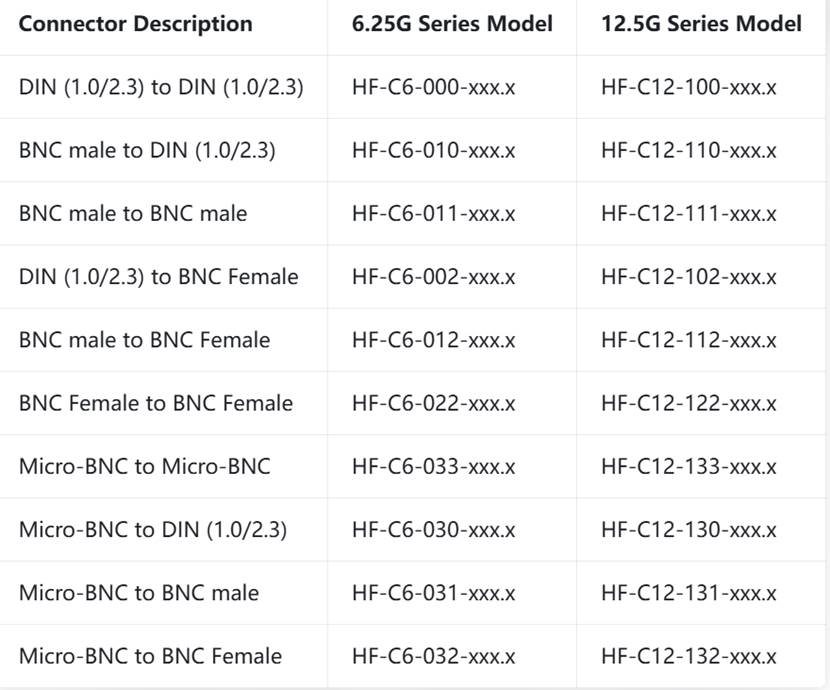

Model Specifications
| Connector Combination | 6.25G Series Model No. | 12.5G Series Model No. |
|---|---|---|
| DIN (1.0/2.3) to DIN (1.0/2.3) | HF-C6-000-xxx.x | HF-C12-100-xxx.x |
| BNC Male to DIN (1.0/2.3) | HF-C6-010-xxx.x | HF-C12-110-xxx.x |
| BNC Male to BNC Male | HF-C6-011-xxx.x | HF-C12-111-xxx.x |
| DIN (1.0/2.3) to BNC Female | HF-C6-002-xxx.x | HF-C12-102-xxx.x |
| BNC Male to BNC Female | HF-C6-012-xxx.x | HF-C12-112-xxx.x |
| BNC Female to BNC Female | HF-C6-022-xxx.x | HF-C12-122-xxx.x |
| Micro-BNC to Micro-BNC | HF-C6-033-xxx.x | HF-C12-133-xxx.x |
| Micro-BNC to DIN (1.0/2.3) | HF-C6-030-xxx.x | HF-C12-130-xxx.x |
| Micro-BNC to BNC Male | HF-C6-031-xxx.x | HF-C12-131-xxx.x |
| Micro-BNC to BNC Female | HF-C6-032-xxx.x | HF-C12-132-xxx.x |
Order Example: HF-C12-133-10.0 = Micro-BNC to Micro-BNC, 12.5G Rate, 10 Meters Length

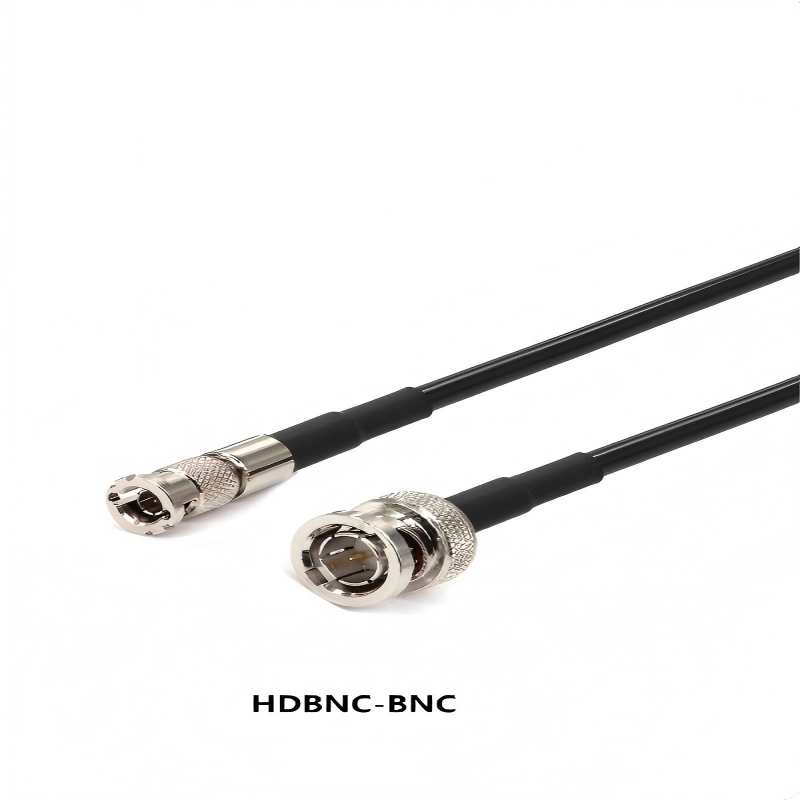

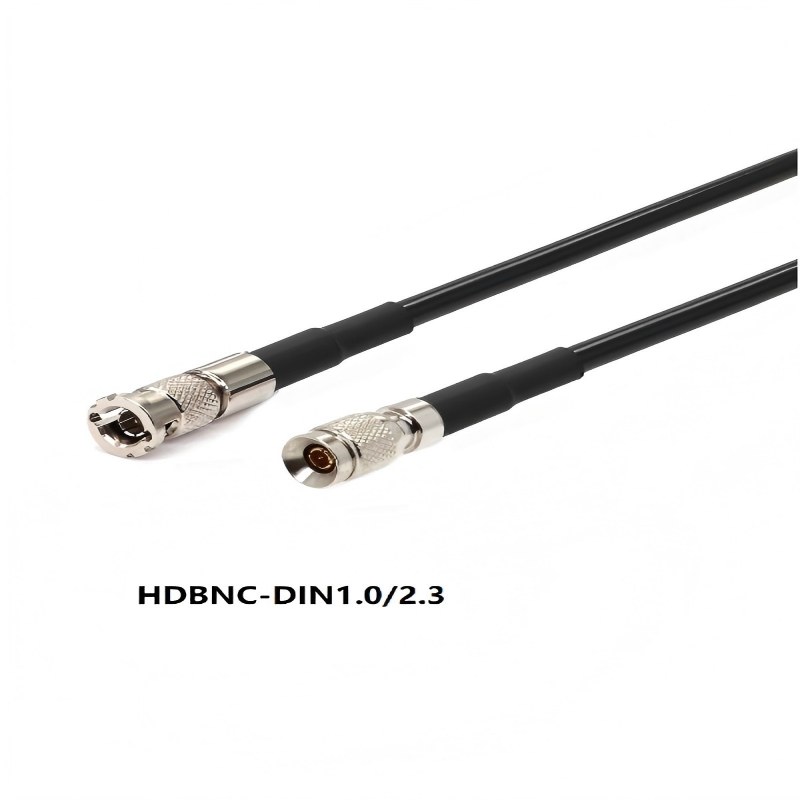

Product Pictures
DIN (1.0/2.3) Cable
BNC Male-Male Cable
HDBNC-HDBNC Cable
Usage Instructions (Read Carefully)
- Power off all connected devices before plugging/unplugging cables to avoid port or hardware damage caused by hot swap.
- Handle connectors gently during connection: align pins and insert smoothly then lock firmly; violent plugging may bend internal pins.
- Do not over-bend, stretch or squeeze cables. Minimum bend radius shall be 10 times the cable outer diameter to prevent internal conductor breakage.
- Deploy in environments away from high temperature, humidity, strong electromagnetic interference and corrosive gas to extend service life.
- Select matching series cable based on transmission bandwidth demand. For 12.5G high-speed applications, use matched premium connectors to guarantee signal integrity.
Customization Service
- Custom Cable Length: Custom arbitrary lengths available to satisfy special installation layout requirements.
- Custom Interface Combination: Personalized connector pairing solutions for non-standard device interconnection.
- Industrial Customization: Special grade cables for high/low temperature, anti-corrosion and harsh industrial environments.
